DigiGas-OX Oxygen Concentration & Partial Pressure Sensor, SDI12, RS485 Interface
View:190 Category:Gas Concentration Category:Measurements Category:Products Category:SDI-12 Products Category:SDI-12 Sensors
DigiGas-OX oxygen sensor measure ambient oxygen partial pressure (ppO2) levels using the principle of luminescence quenching by oxygen, to offer high accuracy at an unmatched price and smallest form factor. The sensor is applicable for science research, routine weather monitoring, air conditioning, environment monitoring etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS485 physical interface for applications that require long cable runs or many sensors.
Resources | |
User Manual | DigiGas-OX Oxygen Concentration and Partial Pressure Sensor User Manual (RS485, SDI-12 Interface) |
Software (RS485 Interface) | SensorOneSet-EN |
Software (SDI-12 Interface) | SensorOneSetSDI12-EN |
Resources | |
User Manual | DigiGas-OX Oxygen Concentration and Partial Pressure Sensor User Manual (RS485, SDI-12 Interface) |
Software (RS485 Interface) | SensorOneSet-EN |
Software (SDI-12 Interface) | SensorOneSetSDI12-EN |
DigiGas-OX oxygen sensor measure ambient oxygen partial pressure (ppO2) levels using the principle of luminescence quenching by oxygen, to offer high accuracy at an unmatched price and smallest form factor. The sensor is applicable for science research, routine weather monitoring, air conditioning, environment monitoring etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS485 physical interface for applications that require long cable runs or many sensors.
Features
■ Integrated with SST? O2 sensor with lifetime > 2 years
■ Luminescence–based optical technology, NOT electrochemical
■ Digital Output SDI-12 or RS485 with built-in surge protection
■ Small size with high accuracy and excellent stability, maintenance free
■ Wall mounting installation
■ Reverse power protection and Built-in TVS/ESD protection
■ Excellent price-performance ratio
Applications
■ Science research
■ Air conditioning and ventilation control
■ Routine weather monitoring
■ Environment monitoring
Specification | |
Output Interface | Optional: SDI-12, V1.3
Optional: RS485, Modbus-RTU |
Power Supply | 9-28V DC |
Power Consumption | SDI-12 Interface:
Quiescent Current: <10uA @12V DC Measuring Current: <20mA @12V DC, measurement interval 1000ms
RS485 Interface: Average Current: <10mA @12V DC Measuring Current : <20mA @12V DC, measurement interval 1000ms |
Oxygen Accuracy | Oxygen Partial Pressure Range:0-300mbar,Resolution:0.1mbar, Accuracy:<2% FS
Oxygen Concentration Range:0-25%,Resolution:0.01%, Accuracy:Determined by accuracy of oxygen partial pressure and barometric pressure. |
Temperature Accuracy | Range:-10~60℃,Resolution:0.1℃,Accuracy:±2℃ |
Barometric Accuracy | Range:500-1200mbar,Resolution:1mbar, Accuracy:±5mbar |
Operating | Temperature: 10~45℃, Barometric: 0-95%? non-condensing |
IP Ratings | IP50 |
Installation | Wall mounting |
Cable Length | 2 meters or Customize |
Dimension | Sensor body: 111*25.5mm (Length*Diameter) |
Ordering Information | |||
Parameters | Code | Comments | |
Code 1:Product Series | DigiGas-OX | DigiGas-OX Oxygen partial pressure and concentration sensor | |
Code 2: Range and Accuracy | A | 0-300mbar(0-25%), <2% FS (Refer to specification for accuracy) | |
Code 3: Power Supply | A
X |
5-28V DC
Customize |
|
Code 4: Output Interface | A
B |
RS485(Modbus-RTU)
SDI-12 |
|
Code 5: Connector | B
C |
Cold pressed terminal
Stripped & tinned lead wires |
|
Code 8: Cable Length | 002
XXX |
2 Meters
Customize, XXX is required cable length (Unit: meter), Max 5 meters. |
|
Ordering Code Example: DigiGas-OX-A A A B 002
Product Series: DigiGas-OX Oxygen partial pressure and concentration sensor; Range and Accuracy: 0-300mbar(0-25%), <2% FS (Refer to specification for accuracy); Power Supply: 5-28V DC Output Interface: RS485(Modbus-RTU); Connector: Cold pressed terminal; Cable Length: 2 Meters |

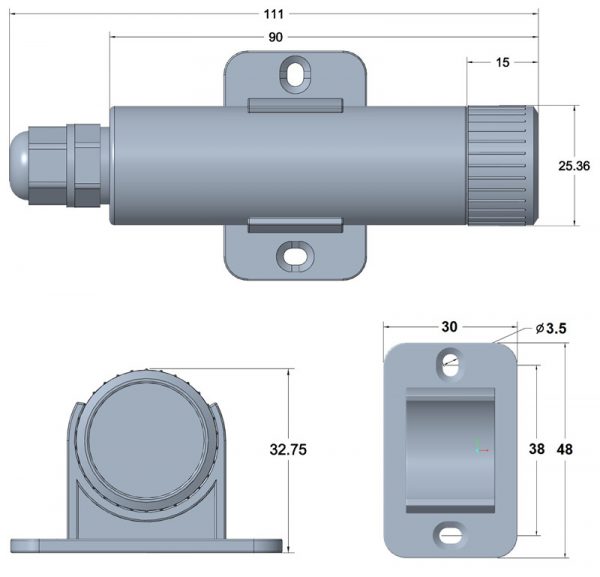

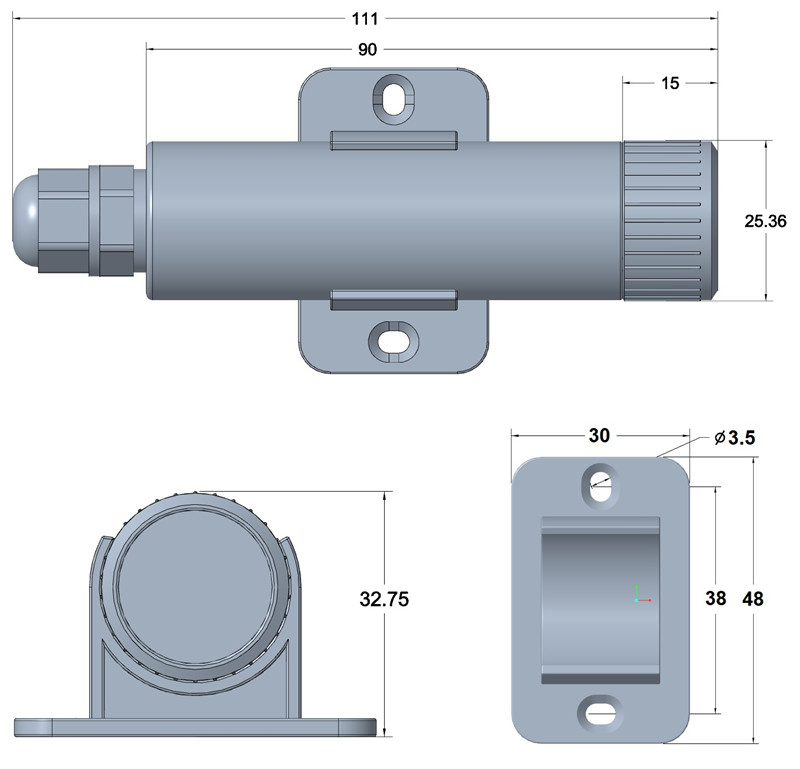

Dimension:

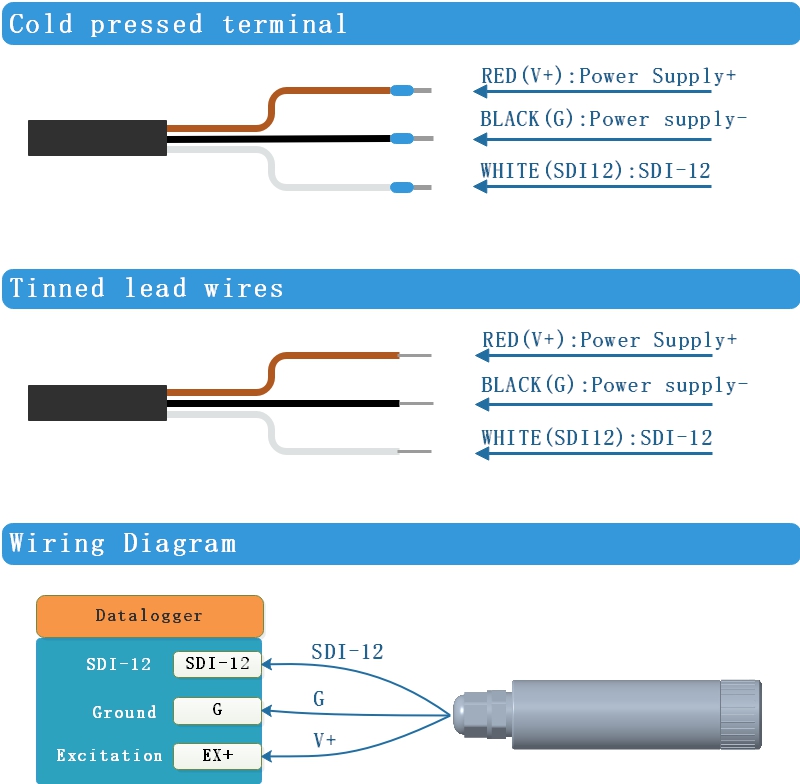

SDI-12 Interface:

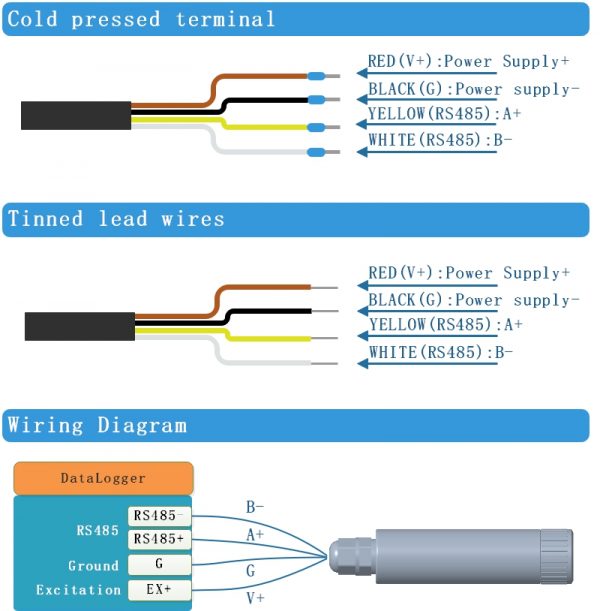

RS485 Interface:
