DigiLTN-Lightning Sensor, SDI12, RS485 Interface

Time:2025/01/06 View:525 Category:Measurements Category:Products Category:SDI-12 Products Category:SDI-12 Sensors

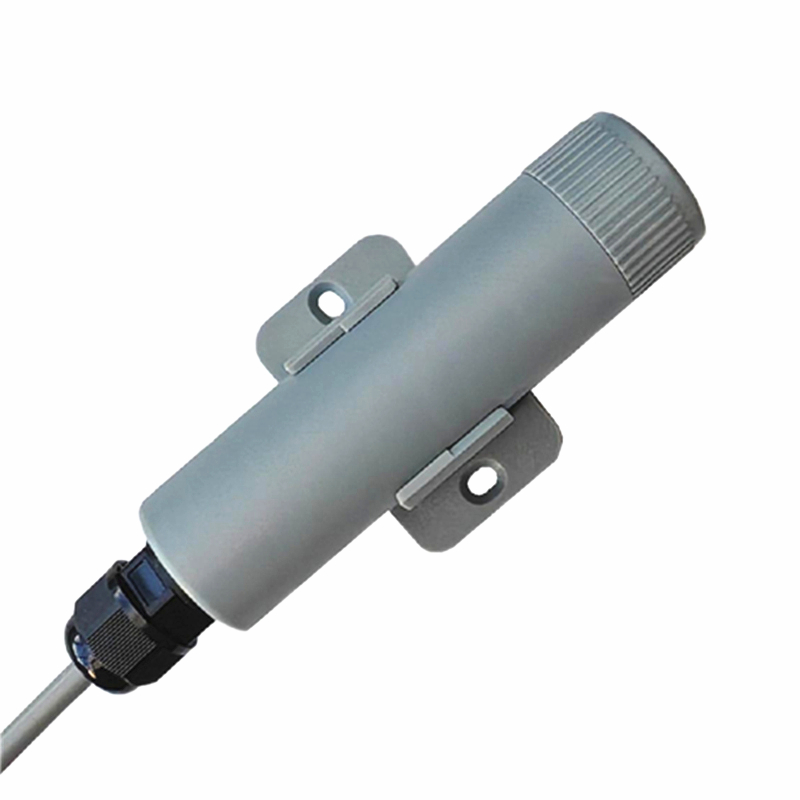

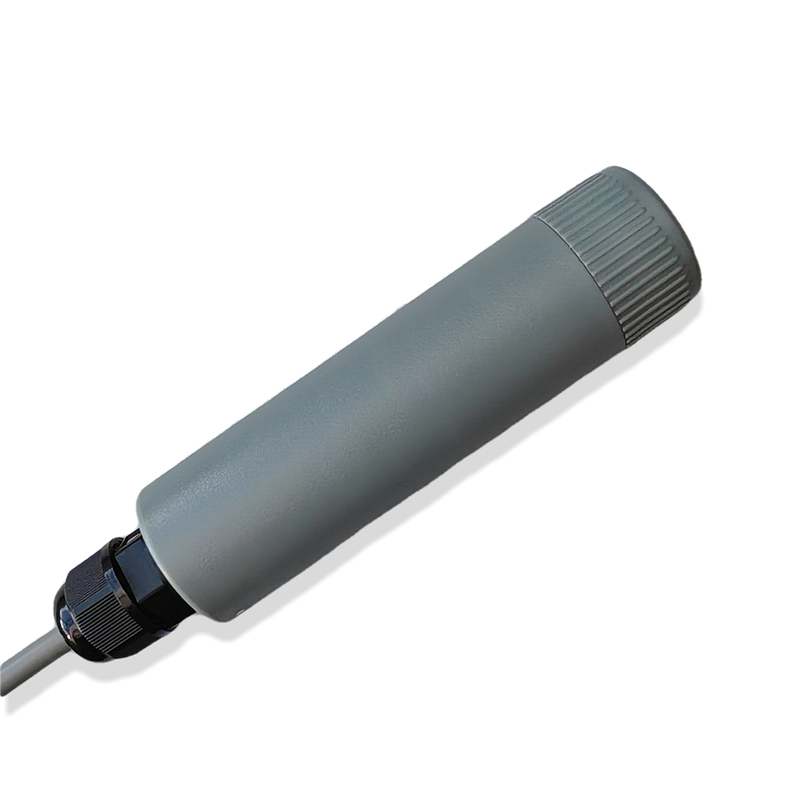

　　DigiLTN is an advisory instrument used for the detection of lightning strikes. The sensor indiscriminately detects cloud-to-cloud, intra-cloud, and cloud-to-ground discharges. It provides strike count, estimated distance of the last strike (0 to 40 km/24 miles), and several other parameters through the RS485 or SDI-12 interface. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS485 physical interface for applications that require long cable runs or many sensors.

Resources
User Manual	DigiLTN-Lightning Sensor User Manual (RS485, SDI-12 Interface)
Software (RS485 Interface)	SensorOneSet-EN
Software (SDI-12 Interface)	SensorOneSetSDI12-EN

　　DigiLTN is designed for industrial users, weather researchers, safety management applications, and system integrators where advisory instruments may be helpful in making safety and management decisions.

Features

■ Integrated AMS AS3935 lightning sensor

■ Lightning sensor warns of lightning storm activity within a radius of 40km

■ Distance estimation to the head of the storm from overhead to 40km in 15 steps

■ Detects both cloud-to-ground and intra-cloud (cloud-to-cloud) flashes

■ Embedded man-made disturber rejection algorithm to reduces false detections

■ Programmable detection levels enable threshold setting for optimal controls

■ Digital Output SDI-12 or RS485 with built-in surge protection

■ Small size with high accuracy with excellent stability

■ Wall mounting installation

■ Reverse power protection and Built-in TVS/ESD protection

■ Excellent price-performance ratio

Applications

■ Industrial applications

■ Weather researchers

■ Safety management applications

■ System integrators where advisory instruments may be helpful in making safety and management decisions

Specification
Output Interface	Optional: SDI-12, V1.3 Optional: RS485, Modbus-RTU
Power Supply	5-28V DC
Power Consumption	SDI-12 Interface: Quiescent current: <400uA @12V DC Max. current during lightning detected: <5mA @12V DC RS485 Interface: Quiescent current: <1.2mA @12V DC Max. current during lightning detected: <6mA @12V DC
Detection	Storm head Range Estimate: 15 values from 0 km to 40 km (0 miles to 24 miles) Consecutive Strike Span: 1 s Detection Efficiency: Approximately 40% Detection efficiency is dependent on the use environment and the level of ambient, man-made electromagnetic noise. Detection thresholds are user configurable and may be increased to reduce the false detection rate at industrial environments, but this will also impact lightning detection.
Detection Parameters	Strike Count Since Last Read Noise Count Since Last Read Disturber Count Since Last Read Distance Estimation Energy of Last Strike (relative) Strike Count 10 minute Strike Count 30 minute Strike Count 60 minute Noise Count 60 minute Disturber Count 60 minute
Operating	Temperature: -40～80℃, Humidity: 0-100%
IP Ratings	IP68
Installation	Wall mounting
Cable Length	2 meters or Customize

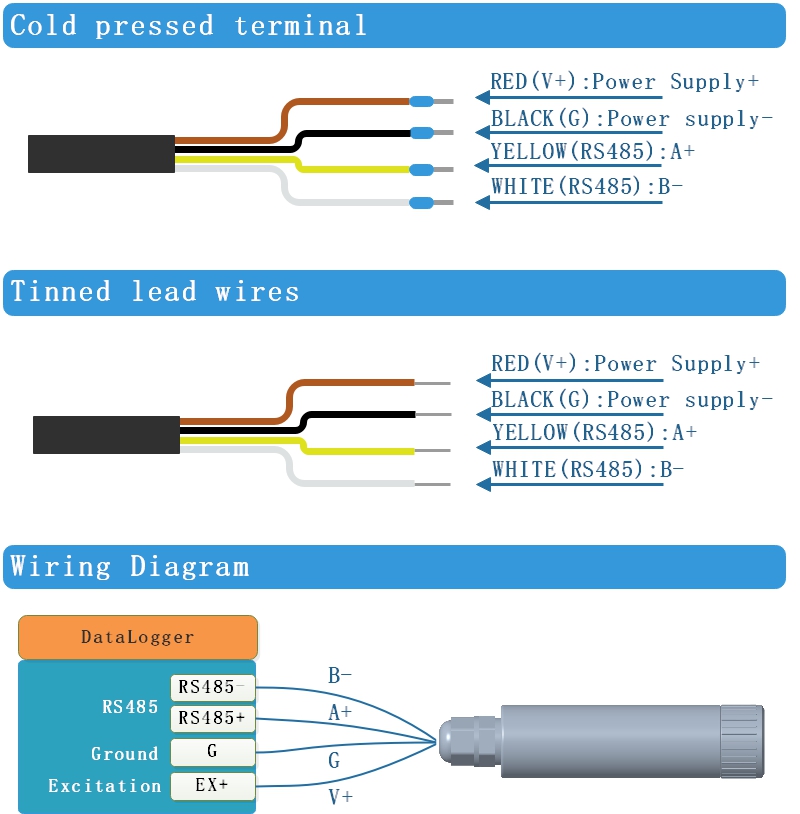

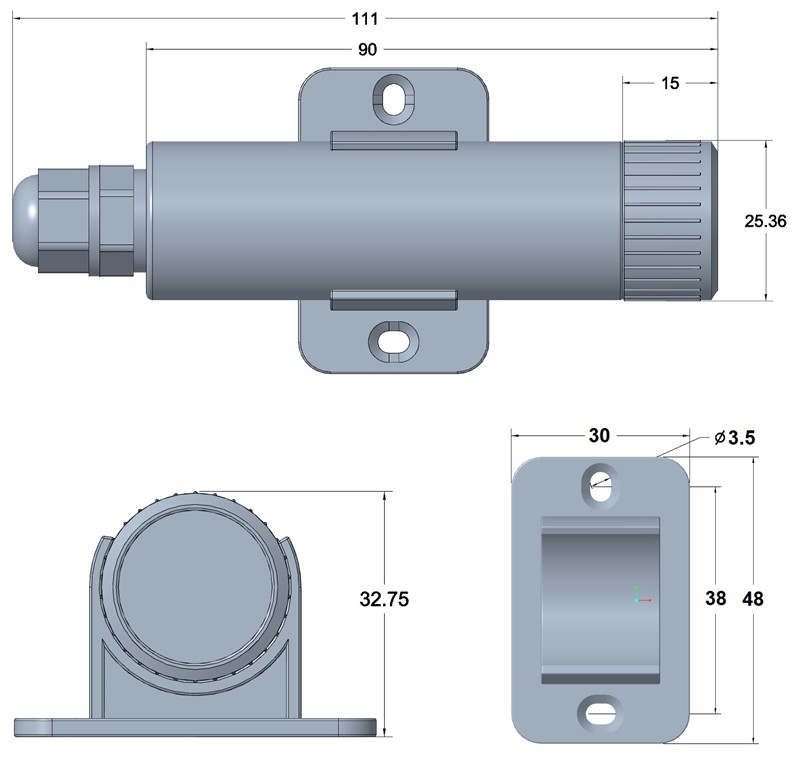

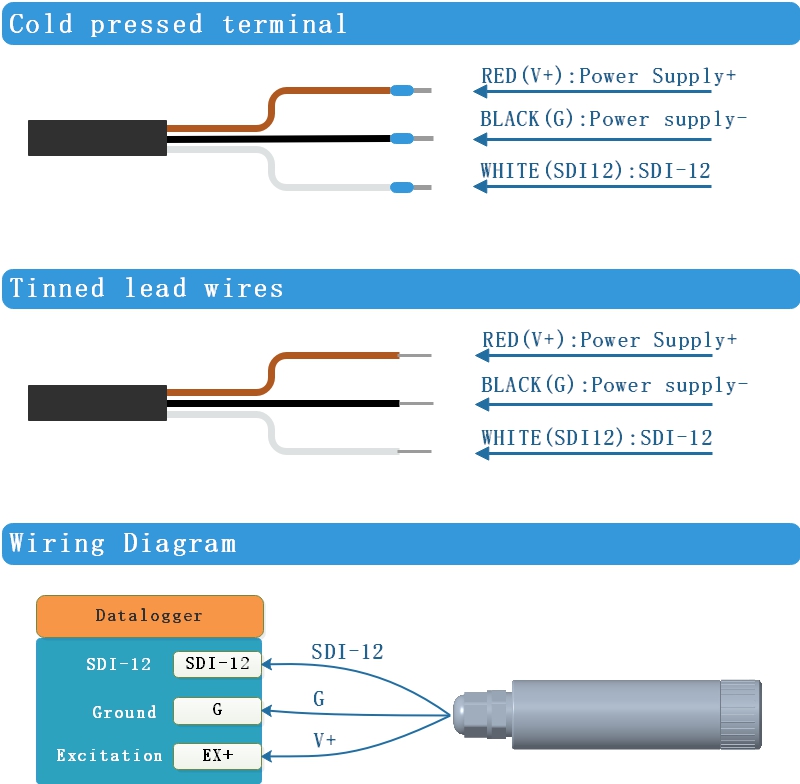

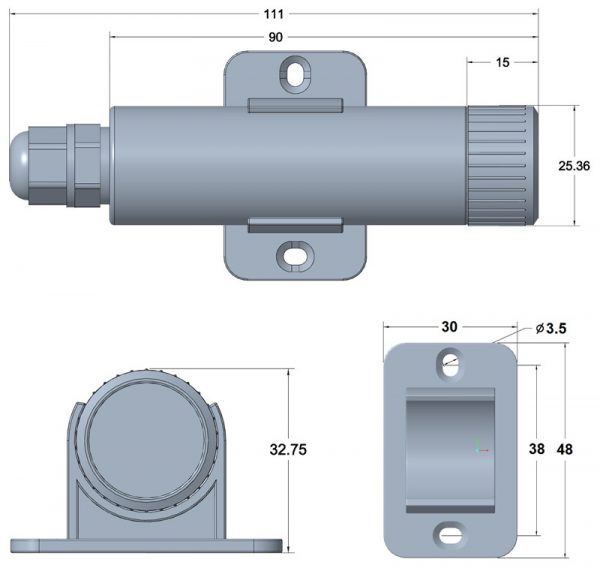

Dimension	Sensor body: 11125.5mm (LengthDiameter)

Ordering Information
Parameters	Code	Comments
Code 1:Product Series	DigiLTN	DigiLTN, Lightning sensor
Code 2: Parameters	A	Lightning detection
Code 3: Power Supply	A X	5-28V DC Customize
Code 4: Output Interface	A B	RS485(Modbus-RTU) SDI-12
Code 5: Connector	B C	Cold pressed terminal Stripped & tinned lead wires
Code 8: Cable Length	002 XXX	2 Meters Customize, XXX is required cable length (Unit: meter)
Ordering Code Example: DigiLTN-A A A B 002 Product Series: DigiLTN, Lightning sensor; Parameters: Lightning detection; Power Supply: 5-28V DC; Output Interface: RS485(Modbus-RTU); Connector: Cold pressed terminal; Cable Length: 2 Meters;
