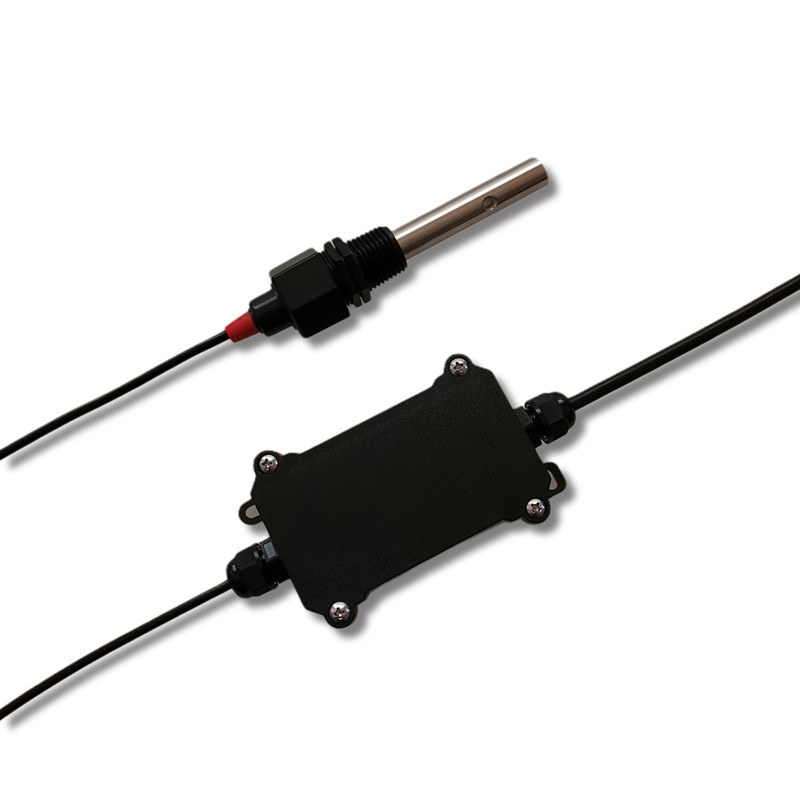

ECTDS10-ISO Isolated Conductivity Transmitter, SDI-12 Interface
View:12429 Category:Conductivity & TDS Category:Measurements Category:Products Category:SDI-12 Products Category:SDI-12 Sensors Category:SDI-12 Transmitter
ECTDS10 isolated measures Conductivity, Salinity, TDS with temperature compensation. It is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.
| Resources | |
| User Manual | ECTDS10 Isolated Conductivity Transmitter User Manual (SDI-12 Interface) |
| Software | SensorOneSetSDI12-EN |
ECTDS10 isolated measures Conductivity, Salinity, TDS with temperature compensation. It is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.
Features:
■ Conductivity, Salinity and TDS measurement with temperature compensation
■ Isolated Sensor Input
■ Optional ABS or Stainless steel electrode
■ SDI-12 Output Interface with low power design
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
| Specifications | |||
| Output Interface | Optional: SDI-12, V1.3 | ||
| Power Supply | 4.5-28V/DC | ||
| Power Consumption | Quiescent Current : <10uA
Measuring Current : <20mA @ 12V DC |
||
| Conductivity
Measurement |
Range: 20000us/cm (20ms/ccm)
Resolution: 1us/cm (0.001ms/cm) Accuracy (calibrated by standard solution): 100us/cm±3% (Range: 0-10000us/cm); ±5%(Range: 10000-20000us/cm) |
||
| EC temperature compensation | 0-50°C | ||
| Temperature Measurement | Range: -40~80°C, Resolution: 0.1°C, Accuracy: +/-0.5°C | ||
| IP Ratings | Electrode: IP68; Transmitter: IP65 | ||
| Operating | Temperature: -40~80°C, Humidity: 0-100% | ||
| Cable Length | Power and Signal Cable: 2 meters or Customize | ||

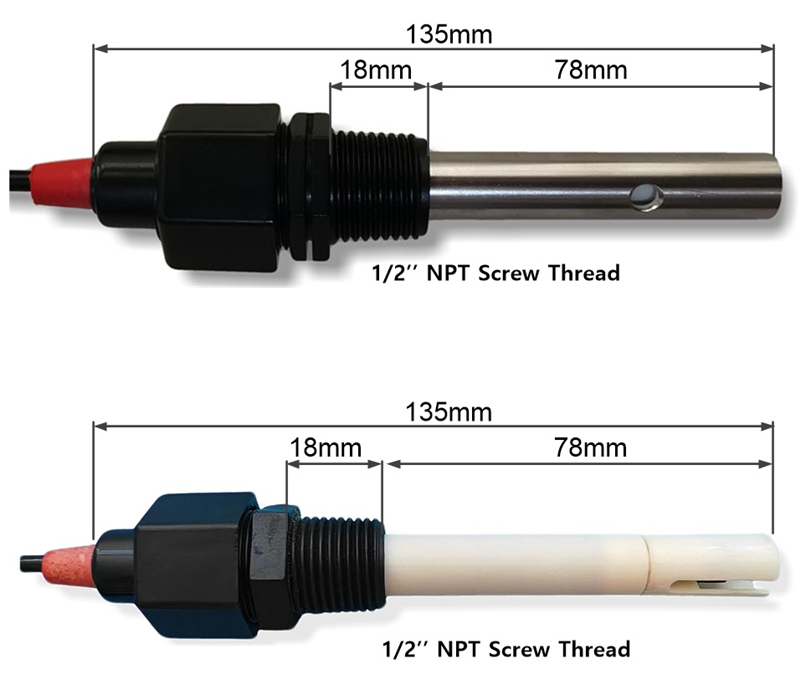

| Dimension | Electrode: 1/2″NPT screw threads, Refer to dimension diagram.

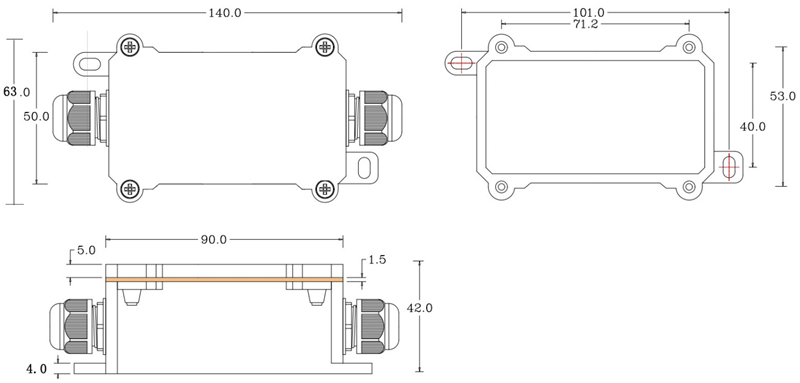

Transmitter: 140mm*65mm*50mm (L*W*H) |
||
| Ordering Information | |||
| Parameters | Code | Comments | |
| Code 1:
Product Series |
ECTDS10
|
ECTDS10 conductivity transmitter | |
| Code 2:
Measuring Parameters |
A | Conductivity, Salinity and TDS | |
| Code 3:
Electrode Selection |
A
B
C D |
Platinum black electrode (K=1.0, ABS plastic housing, built-in NTC 10K/3950 temperature sensor, cable length 5 meters)
Platinum black electrode (K=1.0, ABS plastic & Stainless steel housing, built-in NTC 10K/3950 temperature sensor, cable length 10 meters) Customize Transmitter Only (No electrode) |
|
| Code 4:
EC Range |
A
E |
0-20000us/cm (20ms/cm)
Customize |
|
| Code 5:
Power Supply |
C | 4.5-28V DC | |
| Code 6:
Output Interface |
F | SDI-12 | |
| Code 7:
Cable Length |
002
XXX |
Power and Signal Cable: 2 meters
Power and Signal Cable: xxx meters |
|
| Ordering Code Example: ECTDS10- ABACF002
ECTDS10: Conductivity transmitter; A: Conductivity, Salinity and TDS B: Platinum black electrode (K=1.0, ABS plastic & Stainless steel housing, built-in NTC 10K/3950 temperature sensor, cable length 10 meters) A: 0-20000us/cm (20ms/cm) C: Power Supply 4.5-28V DC F: Output Interface SDI-12 002: Electrode Cable:10 meters , Power and Signal Cable:2 meters |
|||
