ECTDS10 Non-Isolated Solution Conductivity Transmitter with RS485 Modbus, Analog Voltage, Analog Current Interface

Time:2019/05/07 View:7484 Category:Conductivity & TDS Category:Measurements Category:Products

请联系我们咨询

ECTDS10 measures Conductivity, Salinity, TDS with temperature compensation. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage?system, irrigation, smart agriculture etc.

Resources
User Manual	UM-ECTDS10 Solution Conductivity Transmitter
Software	SensorOneSet-EN

■ Conductivity, Salinity and TDS measurement with temperature compensation

■ With ABS or Stainless steel electrode

■ Output Interface with RS485, Voltage, Current

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection

Specifications

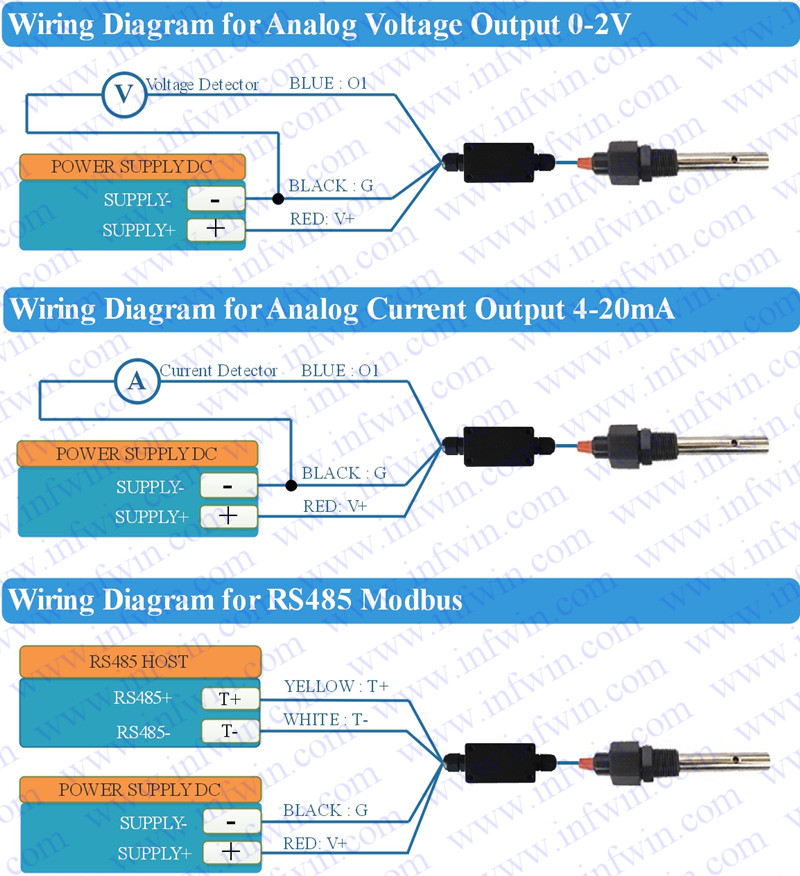

Output Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	Analog Current 4-20mA (Load Resistor<500ohm)	RS485 Modbus-RTU
Power Supply	3.9-30V/DC	12-30V/DC	3.9-30V/DC
Power Consumption	6mA@24V DC	30mA@24V DC (with 20mA output signal)	6mA@24V DC
EC Measurement	Range: 0-5000us/cm, 10000us/cm, 20000us/cm Resolution: 0-10000us/cm, 10us/cm; 100000-20000us/cm, 50us/cm Accuracy: 0-10000us/cm, ±3%; 10000-20000us/cm, ±5% EC temperature compensation: 0-50℃
Temperature Measurement	Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃
IP Ratings	Electrode：IP68 Transmitter：IP65
Operating Temperature	-40~85℃
Installation	Electrode：1/2″NPT screw threads Transmitter：Mounting hole
Cable Length	Power and Signal Cable：2 meters or Customize Electrode Cable：5 meters

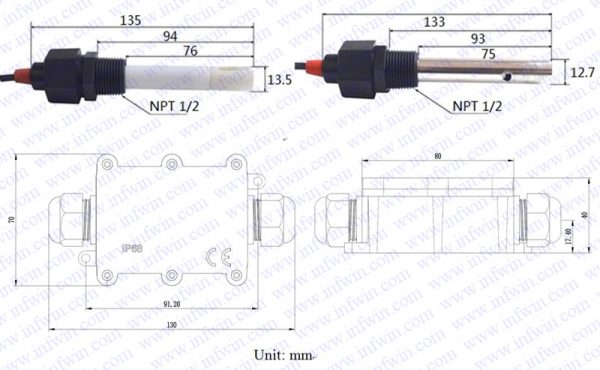

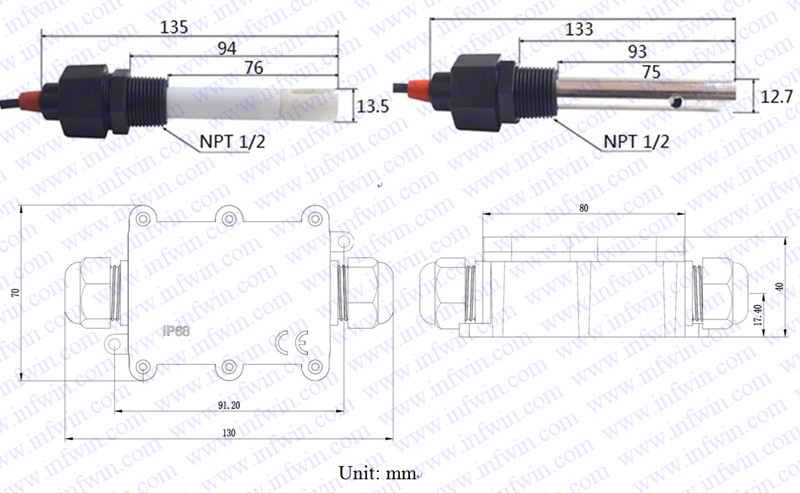

Dimension	Electrode：1/2″NPT screw threads Transmitter：1287042mm

Parameters

Code

Comments

Code 1:

Product Series

ECTDS10

ECTDS10 transmitter

Code 2:

Measuring Parameters

Conductivity, Salinity and TDS

Code 3：

Electrode

ABS electrode

Stainless steel electrode

Customize

Code 4:

EC Range

0-20000us/cm

0-10000us/cm

0-5000us/cm

0-2000us/cm

Customize

Code 5:

Power Supply

3.9-30V DC (not applicable for analog current output)

12-30V DC

Code 6:

Output Interface

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12

Customize

Code 7:

Cable Length

002

XXX

Electrode Cable：5 meters , Power and Signal Cable：2 meters

Electrode Cable：5 meters , Power and Signal Cable：xxx meters

Ordering Code Example:
