PYR20-Solar Radiation/Pyranometer Sensor, SDI-12 Interface
View:10556 Category:Measurements Category:Pyranometer Category:SDI-12 Products Category:SDI-12 Sensors

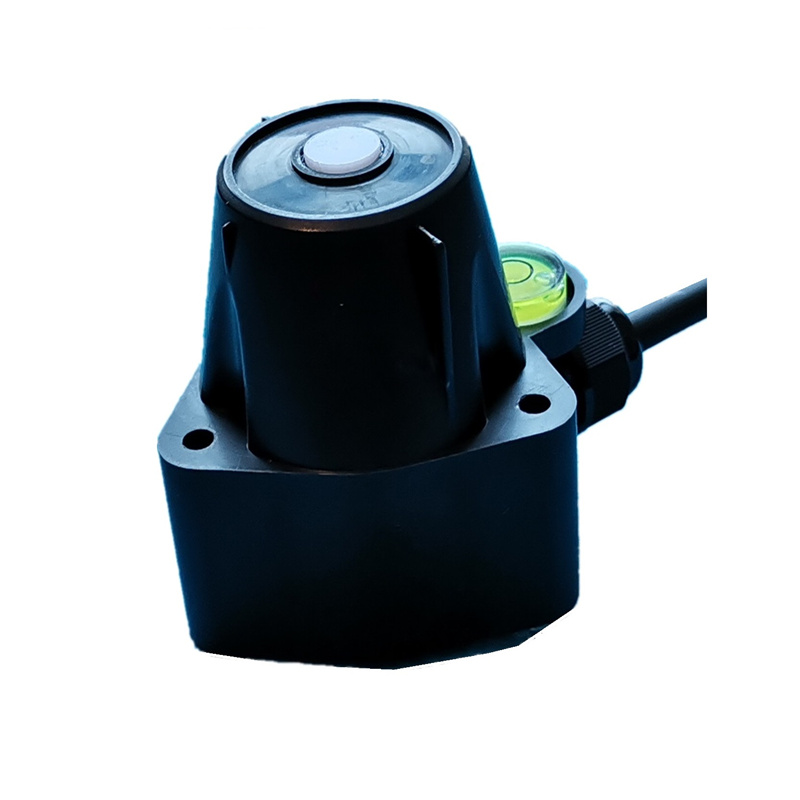

PYR20 pyranometer, or solar Radiation Sensor, measures global radiation of both direct and diffusion of solar irradiance. The internal temperature compensation minimizing the error caused by heating of the sensor. Each sensor is calibrated against Eppley Precision Spectral Pyranometer and offers excellent accuracy and consistency. The sensor is applicable for science research, solar power , greenhouse, weather station etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.
| Resources | |
| User Manual | PYR20 Solar Radiation (Pyranometer) Sensor User Manual (SDI-12 Interface) |
| Software | SensorOneSetSDI12-EN |
PYR20 pyranometer, or solar Radiation Sensor, measures global radiation of both direct and diffusion of solar irradiance. The internal temperature compensation minimizing the error caused by heating of the sensor. Each sensor is calibrated against Eppley Precision Spectral Pyranometer and offers excellent accuracy and consistency. The sensor is applicable for science research, solar power , greenhouse, weather station etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.
Features:
■ Measurement range to 2000W/m2, Spectral range 400-1100nm
■ SDI-12 Output Interface with low power design
■ Temperature compensated
■ Level indicator and spring loaded for installation
■ Water proof to IP66 can be used outdoor
■ High accuracy and consistency with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
| Specifications | |||
| Output Interface | SDI-12, V1.3 | ||
| Power Supply | 4.5-28V/DC | ||
| Power Consumption | SDI-12 Interface: Quiescent Current : <10uA
Measuring Current : 10mA during 50ms measurement |
||
| Solar Radiation | Range:0-2000W/m2, Accuracy 5%, Resolution:1W/m2 | ||
| Spectral Range | 400-1100nm | ||
| Direction Error | Percent of reading: ±3% (0 – ±70°); ±10% (±70 – ±85°) | ||
| Operating | Temperature: -40~80°C, Humidity: 0-100% | ||
| IP Ratings | IP68 | ||
| Installation | Screw hole * 3 | ||
| Cable Length | 2 meters or Customize | ||

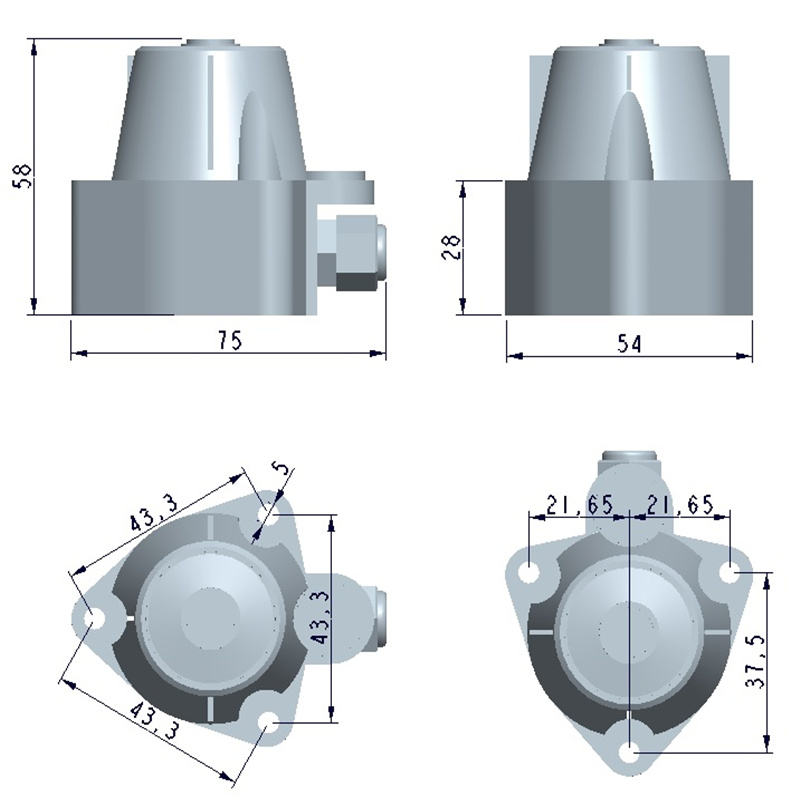

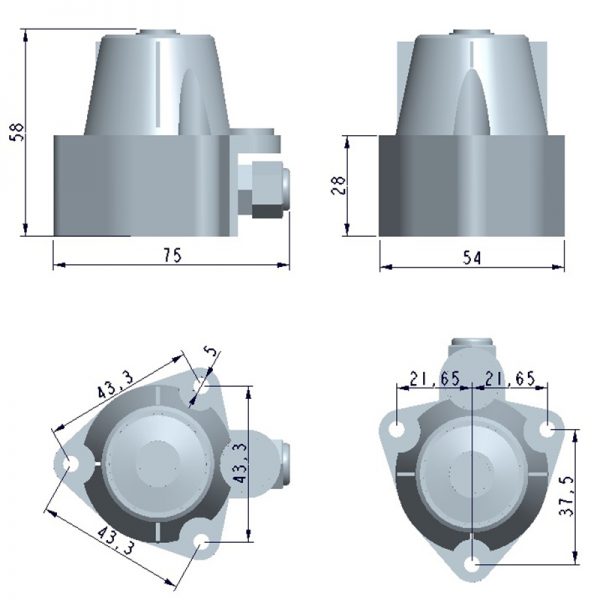

| Dimension | Sensor Body 75*55*58mm | ||
| Ordering Information | |||
| Parameters | Code | Comments | |
| Code 1:Product Series | PYR20 | PYR20 Pyranometer series | |
| Code 2: Range | A
B |
2000W/m2
Customize |
|
| Code 3:
Power Supply |
C | 4.5-28 V DC | |
| Code 4:
Output Interface |
F | SDI-12 | |
| Code 5:
Cable Length |
002
XXX |
2 meters
Customize, XXX is required cable length(Unit: meter) |
|
| Ordering Code Example:
PYR20 pyranometer sensor,Range 2000W/m2,Power Supply 4.5-28V DC,Output Interface SDI-12 ,Cable length 2 meters.Ordering Code is:PYR20-ACF002 |
|||
?
